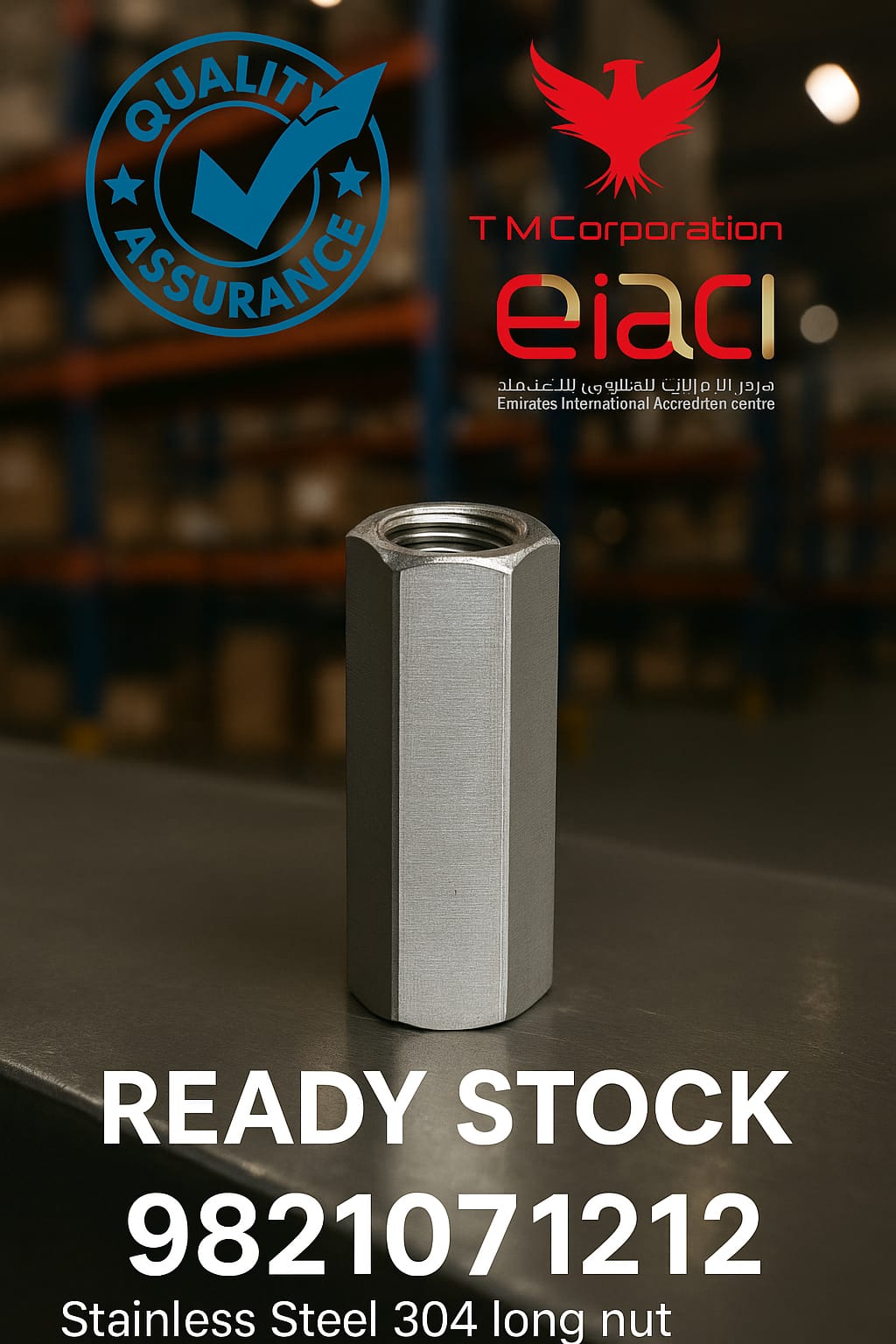

Ss 304 long nut by ARTHA ALLOYS

Ss 304 long nut

INR 55

Description

Product details

The process of manufacturing SS304 long nuts (also called coupling nuts) involves several precise steps to ensure accurate threading, strength, and corrosion resistance. Common Names of stainless steel 304 long nut : (Long Nut, Coupling Nut, Extension Nut, Connector Nut). Raw Material Selection for stainless steel 304 long nut: Stainless Steel 304 (SS304) rod or hexagonal bar. If the nut is not pre-hexagonal, it is machined to hex shape using a CNC turning or milling machine. Cutting process of 304 long nut ss:- Bars or rod are cut to the required length using automatic cutting machines or band saws. Hole making process of 304 long nut ss :- A hole is drilled longitudinally through the nut using CNC or lathe drilling machines. Hole size is slightly smaller than the final thread diameter. Threading ss 304 long nut : Internal threads (e.g., M6, M8, M10, M12) are cut using tapping machines or CNC machines. Surface Treatment for 304 long nut ss:- Passivation to remove free iron and improve corrosion resistance. Pickling removes weld scales or oxide layers. Using ultrasonic cleaners or acid pickling for rust-free finish. Quality Inspection:-Dimensional accuracy (length, diameter), Thread depth and fit (using thread gauges), Material testing (spectro or PMI test), Surface finish inspection. Advantages:-Excellent corrosion resistance, Long service life, High mechanical strength, Suitable for outdoor, marine, and food-grade use, Clean surface finish Properties of 304 long nut ss:- property and value/ description 1.Standard of ss 304 long nut-AISI 304 / UNS S30400 / WNR 1.4301 2.Type of stainless steel 304 long nut-Austenitic stainless steel 3.Corrosion Resistance of 304 long nut 304 ss-Excellent in atmospheric and mild environments 4.Magnetic of long nut 304 ss-Non-magnetic in annealed condition 5.Heat resistance of 304 long nut ss-Up to 870°C (continuous), 925°C (intermittent) 6.Weldability of nut 304 long stainless steel-Excellent. Our company has till now we have export the long 304 nut ss in india to every states and in foreign too. We also provide the long nut ss 304 all over the country. For example:- UAE, Saudi Arabia, Australia, Europe, Russia, Germany, United States of America, London, Canada, Iran, Turkey, Bangladesh, Thailand, Italy, France, South Africa, Sri Lanka, Israel, Oman, Finland, Qatarand, Kerala, Visakhapatnam, Tamil Nadu, Karnataka, MIDC, Gujarat, Uttar Pradesh, Delhi, Noida, Andhra Pradesh, Bangalore, Goa, Chandigarh, Puducherry, Bihar, Telangana, Hyderabad, Assam, Himachal Pradesh, Chhattisgarh, Odisha etc. Dimensions & Sizes of ss 304 long nut. Thread Size (Metric) Length (mm) Across Flats (Hex) M6 20–60 10 mm M8 25–60 mm 13 mm M10 30–70 mm 17 mm M12 40–80 mm 19 mm M16 50–100 mm 24 mm M20 & above Custom sizes Based on design Chemical Composition of SS304 Element Percentage (%) Chromium (Cr) 18.0–20.0 Nickel (Ni) 8.0–10.5 Carbon (C) ≤ 0.08 Manganese (Mn) ≤ 2.00 Silicon (Si) ≤ 1.00 Phosphorus (P) ≤ 0.045 Sulfur (S) ≤ 0.030 Iron (Fe) Balance Applications of SS304 Long Nuts 1. Stainless steel 304 long nut are use in connecting two threaded rods. 2. Stainless steel 304 long nut are use in structural framing. 3. Stainless steel 304 long nut are use in HVAC & plumbing supports. 4. Stainless steel 304 long nut are use in solar panel installations. 5. Stainless steel 304 long nut are use in electrical and instrumentation cable tray mounting. 6. Stainless steel 304 long nut are use in pipe hangers. 7. Stainless steel 304 long nut are use in equipment foundation bolts. 8. Stainless steel 304 long nut are use in mechanical joinery. 9. Stainless steel 304 long nut are use in marine & coastal fittings. 10. Stainless steel 304 long nut are use in civil and architectural fittings. 11. Stainless steel 304 long nut are use in steel structure reinforcements. 12. Stainless steel 304 long nut are use in fencing and barrier systems. 13. Stainless steel 304 long nut are use in power plant construction. 14. Stainless steel 304 long nut are use in wind turbine assembly. 15. Stainless steel 304 long nut are use in machine maintenance. 16. Stainless steel 304 long nut are use in conveyor systems. 17. Stainless steel 304 long nut are use in railway and transportation systems. 18. Stainless steel 304 long nut are use in telecom tower erection. 19. Stainless steel 304 long nut are use in aerospace assemblies. 20. Stainless steel 304 long nut are use in heavy equipment joinery. Packing Nut 304 long ss are packed in corrugated boxes, plastic bags, or bulk in HDPE gunny bags. Export packing may include vacuum-sealed polybags + wooden crates. Small sizes nut are packed in plastic bags, 25–50 pieces per packet. Export packing : Vacuum-sealed polybags + fumigated wooden crates (if required). Then dispatch for delivery. We see to that no damage is on product will packing. Why to choose ARTHA ALLOYS for stainless steel 304 long nut. Delivery is always on time. Raw material is always ready stock. Quality assurance. No minimum order quantity. Inspection of processed goods. In-House Manufacturing. Trust & Transparency. Custom Solutions. Serving All Industries. Support You Can Count On :-Dedicated customer service, quick response time, and after-sales support. Contact: 9821071212 for technical help, pricing, or urgent supply. Our steel is strong—but our customer relationships are even stronger.” ISO 9001: 2008 certificate company. Supplying to Indian and oversea consumers. Government of india recognised export house
